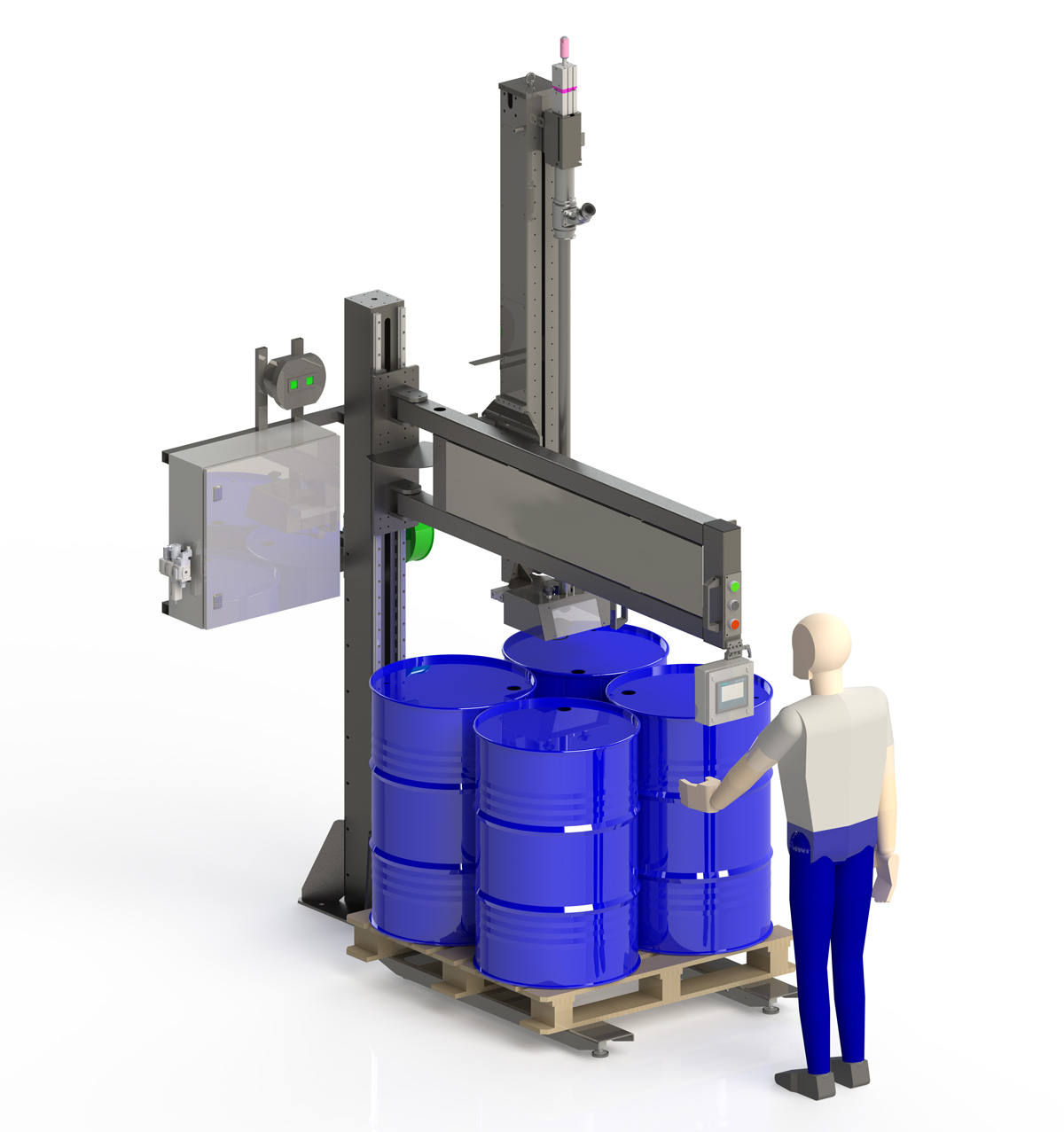

The Drum and IBC filling machine GZM is a versatile and semiautomatic weight filling equipment. It is suitable for filling liquid and viscous products directly on pallet in a wide range of containers.
Universal Drum & IBC Filling System
One Platform ? Dual Capacity ? Precision Multi-Fluid Handling
| Parameter | DF-9100 (Standard) | DF-9200X (ATEX) | DF-9300H (High-Visc) |
|---|---|---|---|
| Container Support | 20-220L Drums 500-1000L IBCs | Same + Hazardous Drums | Same + Slurry IBCs |
| Throughput | 28 Drums or 18 IBCs/hour | 25 Drums or 15 IBCs | 22 Drums or 12 IBCs |
| Accuracy | ±0.15% gravimetric | ±0.2% | ±0.18% |
| Viscosity Range | 1-500,000 cP | 5-300,000 cP | 500-2,000,000 cP |
| Filling Technology | Dual Coriolis Meters | ATEX Diaphragm Pumps | Heated Screw Auger |
| Changeover Time | <90s (Auto-Tooling) | <100s | <85s |
| Material Contact | 316L SS + PTFE Lined | Hastelloy C276 | Hardox 500 + Ceramic Coating |
| Sealing Systems | Drum: Inflatable Gasket IBC: RTP Coupler | Same + Static Dissipation | Same + Cryogenic Seal |
| Power | 480V/60Hz, 12kW | 24VDC Ex ia | 480V/60Hz, 18kW |
| N? Consumption | 50 L/min | 60 L/min | 70 L/min |
| Footprint (L×W×H) | 4200×2800×3500mm | 4500×3000×3700mm | 4300×2900×3600mm |
| Certifications | CE, ISO 9001 | ATEX Zone 1/21 | SIL-3, API 682 |
Key Features:
Magnetic Quick-Change:
| Nozzle Type | Swap Time | Seal Integrity |
|---|---|---|
| Drum Nozzle (?50mm) | 45s | <0.001 ml/min |
| IBC Lance (?80mm) | 55s | <0.0005 ml/min |
Universal Weight Platform:
3000kg Capacity (±0.05%)
Auto Tare Compensation
| Fluid Type | Filling Mode | Performance |
|---|---|---|
| Thin Solvents | High-Speed Gravity | 200 L/min |
| Greases | Pulsed Piston | 80 kg/min |
| Abrasive Slurries | Ceramic Screw Conveyor | Wear Rate <0.01mm/100h |
Chemicals & Petrochemicals
| Feature | Specification |
|---|---|
| Cross-Contamination | Dedicated Fluid Paths |
| VOC Control | >99.9% Carbon Adsorption |
| Batching Accuracy | ±0.1% (ISO 9001) |
Food & Pharma
EHEDG-Compliant Surfaces (Ra<0.8μm)
CIP/SIP Validation (FDA 21 CFR)
Allergen Control Protocols
Paints & Coatings
| Solution | Benefit |
|---|---|
| Color Change System | <120s Flush Time (Residual <5ppm) |
| Settling Prevention | Ultrasonic Agitation |
| Gloss Preservation | Laminar Flow Design |
12" HMI with UniFill OS?
IIoT Features:
OEE Dashboard:
| Metric | Real-Time Tracking |
|---|---|
| Uptime | 98.5% |
| Material Usage | ±0.15% |
Safety Guardian:
| Risk | Action |
|---|---|
| Overfill | SIL-2 Emergency Stop |
| Static >10kV | Auto Ionization |
? ATEX 2014/34/EU (Zone 1/21) ? FDA 21 CFR 177.2600 ? ISO 80079-36:2016 ? CE EN 13445
1. AGV Container Loading → 2. Auto-Identification → 3. Tool-Free Nozzle Engagement → 4. N? Purging (O?<0.5%) → 5. Precision Filling (±0.15%) → 6. Vapor Recovery → 7. Auto-Disconnect → 8. Palletizing
Cycle Time:
Drums: 2.1 min/unit
IBCs: 3.3 min/unit
| Service | Standard | Premium |
|---|---|---|
| Remote Monitoring | 24/7 System Health Dashboard | Predictive Failure Alerts |
| Spare Parts | 72h Global Delivery | On-Site Consignment Stock |
| Training | VR Simulator Certification | On-Site OEE Optimization |
| Software Updates | Annual Upgrade Package | Real-Time Optimization AI |
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
