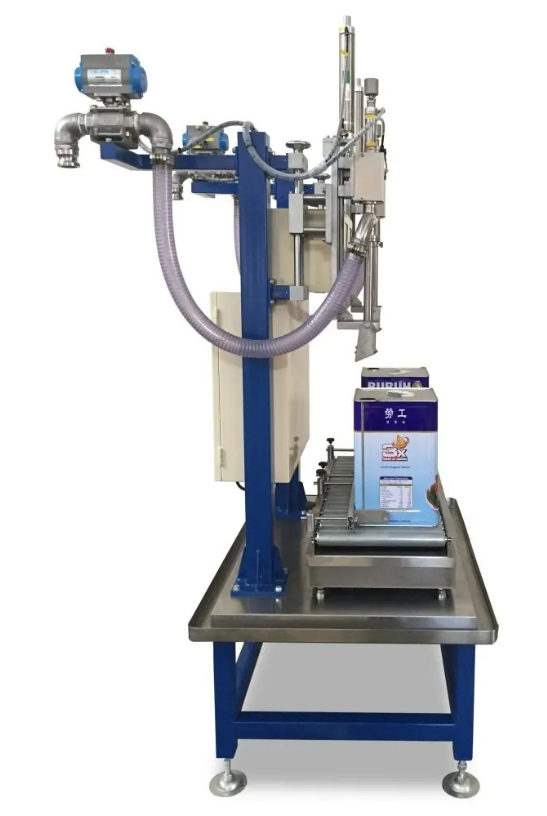

SEMI AUTO TIN CAN WEIGHT FILLING MACHINE

Simple & Easy to operate filling machine, simply place the empty tins on the weighing platform, and it will automatically fill by itself. No mechanical setting on machine when changing container s

  • Brand：
  • Model：

Semi-Auto Gravimetric Can Filler GF-300 Series

Precision Filling Where Automation Meets Flexibility

Core Innovation: Human-Guided Accuracy

Shanghai Guangzhi GF-300 achieves ±0.1% gravimetric accuracy in semi-automatic operation – combining OIML Class 0.5 load cells, adaptive flow control, and food-grade construction to solve critical challenges:
? ±0.1% dosing for oils/syrups/chemicals
? <90s changeover between can sizes
? 50% cost savings vs full automation
? Eliminates manual filling errors (±3%)

Technology Highlights

1. Three-Stage Precision Filling

Performance Specifications:

  • Weighing System:

    • OIML R60 Class 0.5 load cells (±0.05% linearity)

  • Flow Control:

    PhaseFlow RateAccuracy
    Bulk Fill8 L/min±0.5%
    Transition3 L/min±0.2%
    Dribble Fill0.8 L/min±0.05%

2. Safety & Ergonomics

  • Dual Control Modes:

    ModeApplicationSafety Certification
    Foot PedalHands-free operationISO 13849 PLc
    Two-Hand ButtonsFixed can positioningDual-channel safety relay

  • Spill Prevention:

    • Tapered anti-splash nozzles (residual ≤0.1ml)

    • Grounding kit (<10? Ω for static dissipation)

Technical Specifications

ModelGF-310 (Standard)GF-320F (Food Grade)GF-330X (ATEX)
Capacity0.5-10kg0.2-5kg1-15kg
Accuracy±0.1%±0.1%±0.2%
Speed20-40 cans/hour15-35 cans/hour15-30 cans/hour
Can Size?70-150mm × H50-250mmSameSame
Material Contact304 SS + EPDM316L SS + FDA UHMW-PE316L + ATEX polymers
Power220V/50Hz, 0.6kW220V/50Hz, 0.7kW24VDC Ex ia
Changeover Time<90s<120s<100s
ComplianceCE EN 60204-1EHEDG + NSF/3-AATEX Cat. 3G

Industry-Specific Solutions

ApplicationChallengeGF-300 SolutionBenefit
Edible OilsOverfill losses ($0.5M/yr)±0.1% accuracy + batch traceability↓98% giveaway costs
Maple SyrupStickiness causes dripsPTFE-coated nozzles + air knifeResidual ↓ to 0.05g/can
Industrial SolventsStatic ignition riskATEX version + grounding kitSurface resistivity <10? Ω
Pharma LubricantsCross-contaminationQuick-change nozzles + CIP portsCleaning time ↓70%

Operational Economics

Food Oil Producer Case:

  • Manual Process:
    ? ±2.5% variance → $120k/year material waste
    ? 35 cans/hour max

  • GF-310 Implementation:
    ? ±0.1% accuracy
    ? Operator focus: can placement only

  • Results:
    ? $110k annual savings
    ? Throughput ↑ to 40 cans/hour
    ? ROI: 5.2 months

Why Semi-Auto?

ParameterManual FillingGF-300 Semi-AutoFull Auto Line
Accuracy±3%±0.1%±0.05%
Speed20-30 cans/hour30-40 cans/hour100+ cans/hour
ChangeoverImmediate<90s>30 min
Investment$1k25k>$150k
FlexibilityHighExtremeLow

Certifications & Support

Global Compliance:

  • OIML R60 Class 0.5

  • FDA 21 CFR 177.2600 (food contact)

  • EHEDG Doc. 8 (hygienic design)

  • ATEX 2014/34/EU (GF-330X)

Premium Service:

  • 2-Hour Remote Support: AR-guided troubleshooting

  • Critical Spares:

    ComponentDelivery
    Load cells≤48h global
    Nozzle kits≤24h domestic

  • Lifetime Calibration:

    • Annual NIST-traceable certification
      | Accuracy Shift | Action |
      |--------------------|--------------------------|
      | >0.05% | Free sensor replacement |

Precision Without Compromise
Shanghai Guangzhi GF-300: Where operator expertise meets metrological excellence – filling high-value products with confidence. ??
