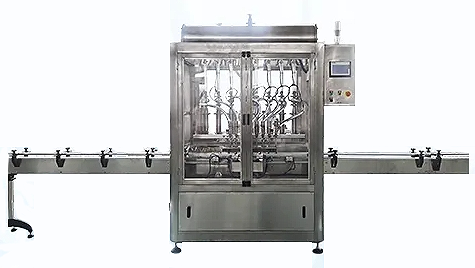

This machine is suitable for filling water and cream products, especially for high viscosity materials (such as washing liquid, suspending agent, colloidal suspension agent,  oil , cream ,etc.) the effect is obvious. PLC programming control, with a touch screen and man-machine interface system; automatic bottle feeding, automatic filling, automatic bottle; the servo motor drive, double screw drive, the control piston rod movement to ensure the filling stability, filling accuracy higher. It can be with the capping machine, labeling machine supporting the formation of water production line.  It integrates light, machine, electricity and gas into one body. Is an easy to operate filling machine. With stable and reliable operation, high production efficiency, strong adaptability.

1.  Automatic bottle sensing system and filling

2.  Filling error is control within 1‰

3.  Can be customized for different bottle and caps.

Gel filling machine Mainly Shows:

1.Place the bottle on the conveyor belt

2.servo motor piston filling when the bottle reaches the designated position

3.Cover hanging machine cover hanging

4.Screw the bottle cap by six wheels

5.at the last, capped bottles come out at the conveyor belt
