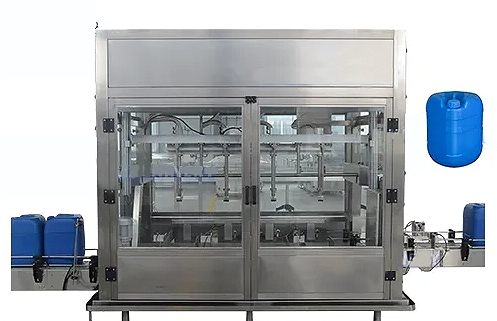

The equipment is mainly used for pesticide, chemical, water agent kind of liquid bottles, packaging, can be applied to a variety of different types of containers. It can form a production line with ca
High-Speed Drum Filling System for Edible & Lubricating Oils
660 Drums/Hour ? ±0.15% Accuracy ? ATEX/FDA Dual Certified ? 90s Changeover
| Parameter | Edible Oil Mode | Lubricant Oil Mode |
|---|---|---|
| Capacity | 180-220L (±0.15%) | 180-220L (±0.18%) |
| Throughput | 660 Drums/Hour | 660 Drums/Hour |
| Accuracy | ±0.15% Gravimetric | ±0.18% Gravimetric |
| Filling Technology | Mass Flow Coriolis Meter | Servo Piston + Mass Flow |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 |
| Oxygen Control | N? Blanketing (O?<0.3%) | Not Required |
| Temp Control | 25°C±0.5°C (Oxidation Prevention) | 60°C±2°C (Viscosity Stability) |
| VOC Management | Carbon Adsorption (>99.9%) | Closed-Loop Recovery |
| Static Protection | Ionized Air Curtain | Grounding Verification (<5Ω) |
| Nozzle System | Coanda Adhesion Design | Spring-Loaded Submerged Lance |
| Sealing Integrity | Vapor-Lock Gasket (<0.001ml/min) | Double Lip Seal |
| Power | 480V/60Hz, 18kW | 480V/60Hz, 22kW |
| Changeover Time | <90s (Auto-Purge System) | |
| Certifications | FDA 21 CFR 177.2600 EHEDG EL Class I | ATEX Zone 1 API 607 |
Changeover Protocol:
Flush Path with Food-Grade Solvent
N? Purging (3x Volume Exchange)
Surface ATP Test (<5 RLU)
Recipe Validation (Blockchain Record)
| Metric | Edible Oil Performance | Lubricant Performance |
|---|---|---|
| Flow Rate | 300 L/min/Nozzle | 280 L/min/Nozzle |
| Weight Variance | ±0.12% (OIML R117) | ±0.15% |
| Residual Oil | <0.05ml | <0.08ml |
Edible Oil Packaging (Sunflower/Olive/Palm)
| Feature | Technology |
|---|---|
| Vitamin Preservation | Amber UV-Filtered Path |
| Peroxide Control | N? Sparging During Filling |
| Allergen Safety | Dedicated CIP Circuit |
Lubricant Packaging (Engine/Gear/Hydraulic)
| Component | Specification |
|---|---|
| Viscosity Compensation | Real-Time Temp Adjustment (±0.5 cP/°C) |
| Additive Protection | Low-Shear Flow Path |
| Foam Prevention | Vacuum Degassing (-0.7 bar) |
15" HMI with OilOS?
AI-Driven Features:
Quality Sentinel:
| Parameter | Action |
|---|---|
| FFA >0.1% (Edible) | Reject + Alarm |
| Water >200ppm | Divert to Holding Tank |
Precision Guardian:
| Anomaly | Resolution |
|---|---|
| Density Shift >0.5% | Auto Flow Adjustment |
| Flow Imbalance >1% | Nozzle Calibration |
? FDA 21 CFR 177.2600 (Edible Oil) ? ATEX 2014/34/EU Zone 1 (Lubricant) ? EHEDG EL Class I ? ISO 9001:2015 ? API 682 Seal Plan
1. AGV Drum Loading → 2. Auto-Mode Recognition → 3. Path Purge (Food/Industrial) → 4. Precision Filling (±0.15%) → 5. Vapor Recovery → 6. Lid Torque Control (20-100 N·m) → 7. Leak Test (-0.8bar) → 8. Palletizing
Cycle Time: 5.5 seconds/drum
Cargill Edible Oil Report:
*"After converting to DO-9000:
Output: 400 → 660 Drums/Hour (+65%)
Oil Loss: 0.8% → 0.05% (Saves $480,000/year)
Peroxide Value: 1.2 → 0.3 meq/kg
ROI: 7 months"*
ExxonMobil Lubricants:
"Filled 500,000 drums with 0.16% accuracy – DO-9000's viscosity compensation maintained ISO VG grade integrity across -10°C to 45°C"
Dual-Industry Precision:
? Material Science: - Edible Path: Electropolished 316L (Ra<0.4μm) - Lubricant Path: Hastelloy C276 (HCl Resistance) ? Safety Architecture: | **Risk**| **Solution**| |----------------------|--------------------------------| | Oil Mist Explosion | ATEX Pressurized Cabinets | | Cross-Contamination | Triple-Block Purge System| | Static Ignition | Conductive Flooring + Ionizers | ? Smart Efficiency: - 90s Product Changeover - 0.5% Yield Loss - 18kW Energy Recovery System
