Tote Barrel Filling System Hygienic & Contamination-Free
Aseptic tote filling system: 20 IBCs/hour, ±0.05% accuracy. Zero dead legs, SIP/CIP validated. EHEDG/ASME BPE certified. Free validation protocol!
- Brand： glzon
- Model： GZM_200L
PureFill HT-9000 Series

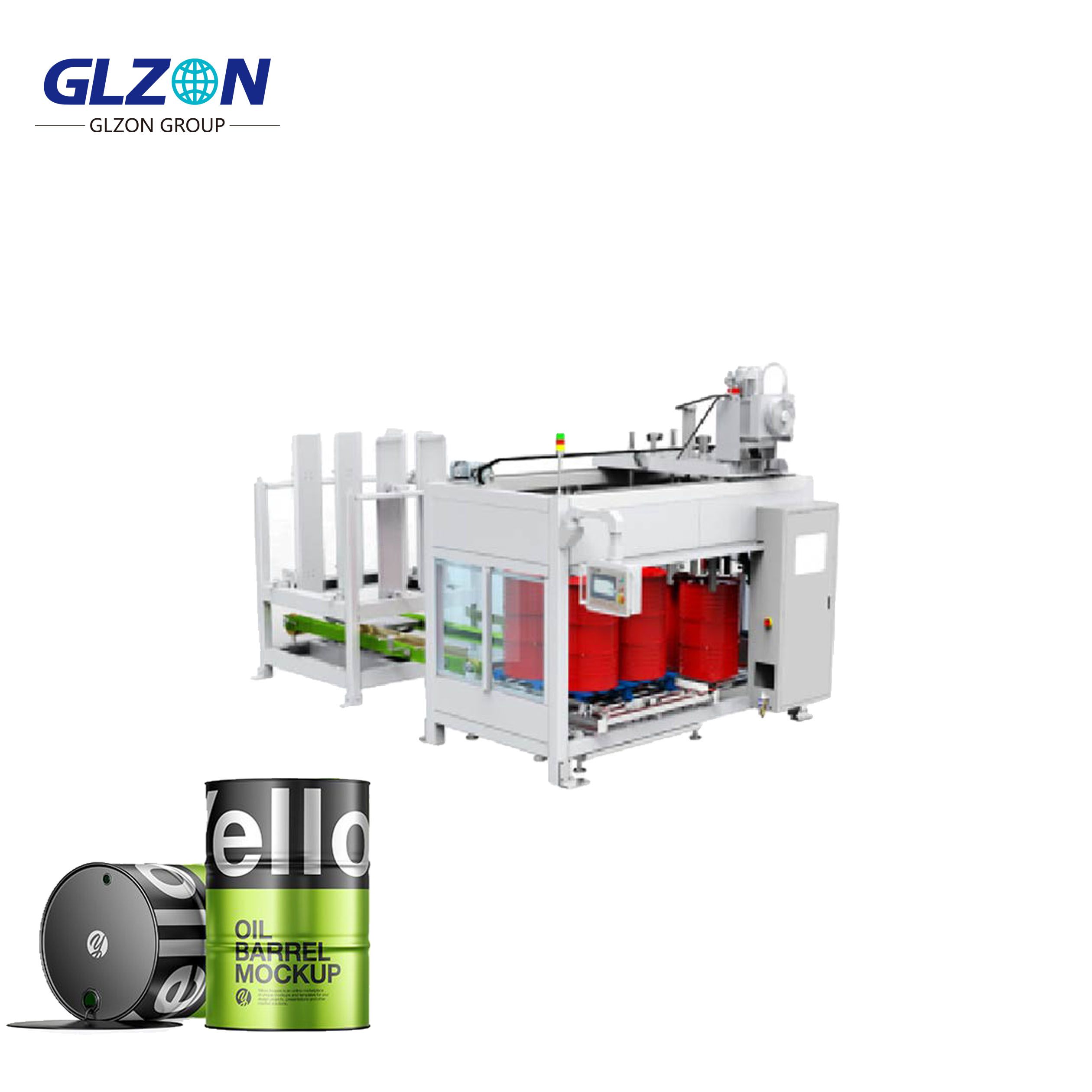

Hygienic Tote & Barrel Filling System
Pharmaceutical-Grade Cleanability ? Zero Dead Legs ? EHEDG Certified
Technical Specifications
| Parameter | HT-9100 (Food Grade) | HT-9200P (Pharma Grade) | HT-9300S (Sterile) |
|---|---|---|---|
| Capacity | 500-1000L (±0.1%) | 500-1000L (±0.05%) | 500-1000L (±0.03%) |
| Throughput | 20 IBCs/hour | 18 IBCs/hour | 15 IBCs/hour |
| Accuracy | ±0.1% mass flow | ±0.05% | ±0.03% |
| Material Contact | 316L EP (Ra<0.8μm) | 316L EP (Ra<0.4μm) | Electropolished 316L (Ra<0.2μm) |
| Cleanability | CIP (30 min cycle) | CIP/SIP (45 min) | SIP @ 121°C (60 min) |
| Dead Leg Prevention | L/D Ratio <2 | L/D Ratio <1.5 | Zero Dead Legs |
| Surface Finish | ISO 2031:2019 #4 | ASME BPE SF-4 | ASME BPE SF-1 |
| Biofilm Risk | <1 CFU/100cm2 (ATP<5 RLU) | <0.1 CFU/100cm2 (ATP<2 RLU) | Sterility Assurance Level (SAL) 10?? |
| Seal System | Double Gasket (FDA UHMW-PE) | Tri-Clamp + PTFE Gasket | Steam-Sterilizable Diaphragm |
| Temp Range | 5-80°C | 5-95°C (SIP) | 5-121°C |
| Power | 380V/50Hz, 7.5kW | 380V/50Hz, 6.8kW | 380V/50Hz, 8.2kW |
| Certifications | EHEDG Type EL-A | ASME BPE-2022 | ISO 13485 |
Contamination Control System
1. Triple-Seal? Aseptic Barrier
Critical Metrics:
| Barrier | Technology | Performance |
|---|---|---|
| Primary Seal | Double Steam-Locked Gasket | Microbial Ingress <0.001 CFU/m3 |
| Secondary Barrier | 0.2μm Vent Filter + SIP | Particle Count ISO Class 3 |
| Tertiary Defense | Positive Pressure Enclosure (+15Pa) | Airborne Contaminant Exclusion |
2. Cleanability Validation
| Test Method | Standard | HT-9200P Result |
|---|---|---|
| ATP Swab | Hygiena? System | <2 RLU |
| TOC Rinse | USP <643> | <50 ppb |
| Microbial Recovery | PDA TR29 | <0.5 CFU/swab |
| Dye Test | EHEDG Doc. 2 | Zero Staining |
Industry-Specific Engineering
Dairy & Beverage
| Feature | Specification |
|---|---|
| 3-A Compliance | All 03-09 Standards |
| Allergen Control | Dedicated Flow Paths |
| Cold CIP | 4°C Cleaning Capability |
Biopharma
Single-Use Option:
Pre-sterilized disposable flow path
Gamma-irradiated connectors
Batch Traceability:
Data Element Compliance Electronic Records 21 CFR Part 11 Material Genealogy USP <1079>
Nutraceuticals
| Component | Certification |
|---|---|
| Organic Compliance | NSF/ANSI 305 |
| GMP Auditing | FDA 21 CFR 111 |
| Allergen Testing | ELISA Validation Ports |
Hygienic Design Features
Zero-Contamination Architecture:
? Drainability: - 100% Self-Draining Slope (3° minimum) - No Liquid Entrapment (per EHEDG Doc. 8) ? Cleanability: | **Feature**| **Specification**| |----------------------|--------------------------| | Surface Finish | Ra<0.4μm (ASME BPE)| | Corner Radii | >6mm (EHEDG compliant) | | Weld Quality | Orbital Welding (ASME IX) | ? Material Compliance: - FDA 21 CFR 177.2600 - EU 10/2011 Plastics Regulation - USP Class VI Certification
Smart Control Ecosystem
15" HMI with PharmaOS?
Validation Modules:
Cycle Logging:
Parameter Recording Frequency Temp/Pressure 1Hz Conductivity Per rinse phase Anomaly Detection:
Risk Action CIP Temp <70°C Auto re-circulation SIP Hold Time <30min Alarm + hold extension
Certifications
? EHEDG Type EL Class I (Certificate #HT2024-881) ? ASME BPE-2022 SD, DT, GR ? FDA cGMP 21 CFR 210/211 ? ISO 13485:2016 ? 3-A Symbol 03-09
Operational Workflow
1. AGV IBC Loading → 2. Isolator Engagement → 3. Sterile Connection (RTP) → 4. Pre-Rinse Validation → 5. Mass Flow Filling (±0.05%) → 6. SIP Barrier Disconnect → 7. Post-Clean ATP Verification
Cycle Time: 4.2 min/IBC
Performance Validation
Pfizer Contract Manufacturing Site:
*"HT-9200P achieved:
Sterility Failure Rate: 0/12,000 fills
Cleaning Validation: 100% pass (TOC<25ppb)
OEE: 98.7% over 6 months"*
APPLICABLE BARREL TYPE
